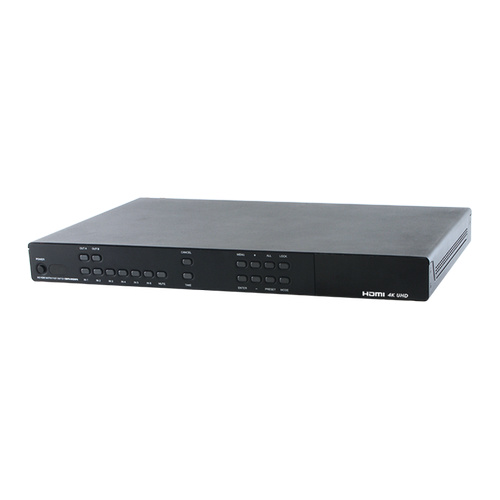

CDPS-6H2HFS - 4K UHD 6×2 HDMI Matrix with Audio De-embedding

The 6 by 2 HDMI matrix which allows HDMI signal from any of its six sources to be routed to and displayed on any of its two connected HDMI displays simultaneously with View All Mode and Picture-inpicture (PIP) supported. With fast switching technology the device can greatly eliminate the time required by swapping or turning ON/OFF the connected displays. It supports 4Kx2K, 3D, 36-bit Deep Color, Hi-Def lossless audio and other features defined by HDMI specifications. The management of source/sink scenarios can be operated easily through on-panel buttons, IR remote control, RS-232 or Ethernet protocol.

(CDPS-6H2HFS, OR-HD62CD)

(OR-HD62CD)

Specification

HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant
Support six HDMI inputs and two HDMI outputs
Displays any of six (6) High-Definition sources on two (2) HDTV displays simultaneously with fast switch
When in Preview mode, the system will be treated as Switcher (two HDMI output same images at the same time)
In Preview mode, it support View All (1 Main video source and 5 Sub video sources) and PIP (1 Main video source and 1 Sub video source) but 3D and 4K2K sources inputs are not supported
3DTV Pass-Through
Supports HDTV resolutions up to 4Kx2K (3840x2160@24/25/30 & 4096x2160@30Hz)
Supports Optical audio extraction
Supports Optical audio sampling rate output up to 192kHz
Supports data rate from 300Mbps to 3Gbps and Deep Color up to 1080p 36-bit
Supports individual EDID or common EDID
Supports LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH (Pass through), Dolby TrueHD and DTS-HD Master Audio
Supports 6 sets of Matrix preset functions for input/output setting
Input port HDCP support Standard and Apple mode and the Apple mode selection to guarantees the use of Apple devices
Compliant with DVI source (Not support Deep color and Color space YCbCr 422/444)
Supports OSD on output B under Preview Mode

Inputs	6x HDMI [6x Uncompressed AV and Data] 1x 3.5mm [1x Infrared Receiver] 1x DE-9 [1x RS-232 Data] 1x RJ-45 [1x IP Control] 1x USB Type-A [1x SERVICE Propriety Data]
Outputs	2x HDMI [2x Uncompressed AV and Data] 2x TOSLINK [2x OPTICAL 2 Channel LPCM]
PSU:	5V/2.6A
Dimensions	438mm [W] x 278mm [D] x 53mm [H]
Net Weight	3042g
