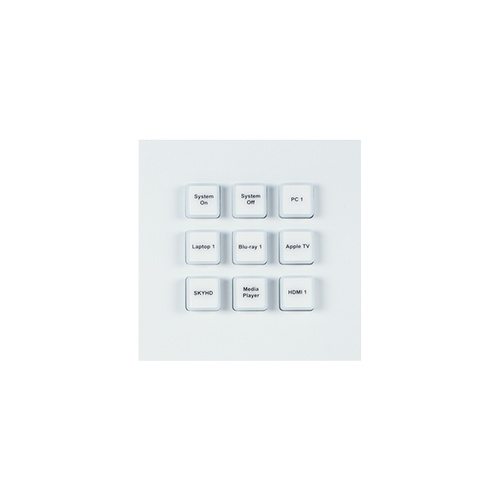

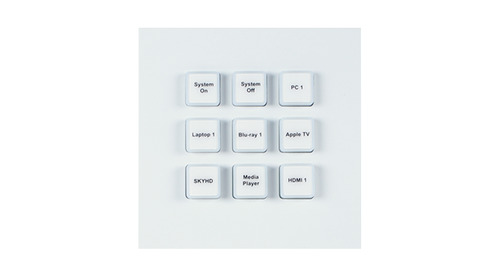

These keypads are versatile and useful products for both system integrators and smart home users alike. These keypads can send commands to any Ethernet or relay trigger controlled device in your system. With up to 15 physical macro buttons and up to an additional 15 software macro buttons (9 each on the 1 gang version) you can pre-program and recall up to 30 (18 on the 1 gang version) distinct macros providing for complete control over your audio and video environment. The soft and colorful LED buttons are suitable for all environments and PoE (Power over Ethernet) support allows for creative placement of the keypad within your space without needing to be concerned about keeping it near a live power source. Additionally, the integrated clock and calendar based scheduling feature allows you to trigger macros to control devices within your installation at a specific time, or on a recurring schedule.

(CDPW-K1S, CR-KP2)

(CR-KP2)

Specification

  • UK 2 or 1 gang wall plate design with adjustable LED brightness
  • 30 (18 on the 1 gang) macros for controlling user equipment
  • Up to 128 total commands can be stored and used across all macros in the system (up to 16 per macro)
  • Supports relay triggers to control compatible devices
  • Supports time and date macro scheduling (single and recurring)
  • Supports 48 hours of backup power for the internal clock and schedule function to protect against blackouts and temporary power loss
  • Supports customizable daylight savings time settings for scheduling
  • Supports Keypad, Telnet and WebGUI control
  • Supports PoE or DC power supply
  • Multiple uses for home, hotel rooms, central control rooms, conference rooms, etc.

Outputs
1x RJ-45 [1x IP Control]
1x Terminal Block 2-pin [1x Relay]
PSU:
5V/2.6A
Dimensions
87mm [W] x 31mm [D] x 87mm [H]
Net Weight
190g

SKU CDPW-K1S
Model # CDPW-K1S
CYP EU Model # CR-KP2
Brand Cypress
Shipping Weight 0.6130kg
