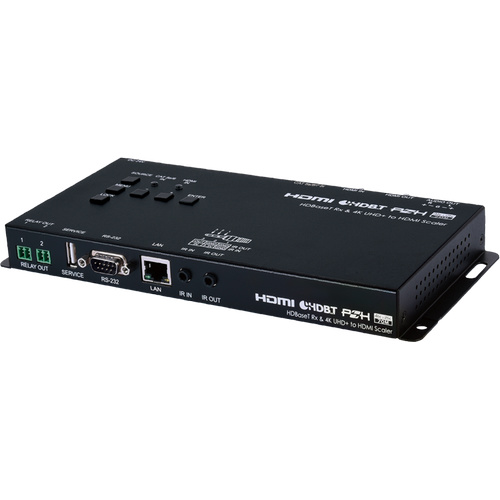

CH-2535RX - 4K60 (4:4:4) HDMI over HDBaseT Scaler with IR, RS-232, LAN, Balanced Audio Extraction & Relay Control

This new collaboration Transmitter and Receiver system is a convenient turnkey solution for video selection and extension in conference rooms, classrooms and showrooms. These units provide not only AV conversion and extension but also an intelligent and easy way to control devices throughout the entire venue. The three most common input interfaces (HDMI, DisplayPort, and VGA) are supported by the Transmitter, providing the ultimate in source compatibility and flexibility. The HDMI and DisplayPort inputs both support resolution/timing up to a maximum of 4K@60Hz (4:4:4, 8-bit) which is converted, as appropriate, for transmission over HDBaseT. The selected source can be transmitted over Cat.6/7 cable up to 70m (at 4K@60Hz). The Receiver can scale the HDBaseT video source, or local HDMI input, to match the connected display’s resolution requirements.
The Transmitter also provides an interface for a remote control keypad, or trigger interface, which can be easily installed within a podium or within a table in a conference room or classroom. This interface can allow the user to control a wide range of devices by activating single commands or complex macros and sending commands out over the local network. In order to provide a more robust selection of control options, the Receiver also supports 2 relay connections, providing instant control over projector screens, curtains, lights, etc. The unique macro programmability allows for the implementation of multiple command activations from a single button press. These units are controllable via top panel controls (with OSD), WebGUI, Telnet, and RS-232.

(CH-2535RX, PUV-1650RX)

(PUV-1650RX)

Specification

HDMI, DisplayPort, and VGA input support
Input resolution support up to 4K@60Hz (4:4:4, 8-bit) via HDMI and DisplayPort
HDBaseT feature support: High-Definition (HD) Video and Audio, 100BaseT Ethernet, 48V PoH, and Bi-directional IR pass-through
Receiver's scaled output supports resolutions up to 4K@60Hz (4:4:4, 8-bit) via HDMI
Support pass-through of LPCM 2.0/5.1/7.1, Bitstream & HD Bitstream audio formats
External analog stereo audio embedding/de-embedding support
Support for automatic input detection and automatic switching on source loss
Supports controlling a wide variety of conference room equipment such as media players, projectors, projection screens, curtains, etc. via Ethernet, RS-232, IR, or relay (method is device dependent)
Support for IR code learning as well as IR broadcasting
Supports Telnet for both client and server functionality
Control system supports defining up to 16 devices to simplify control and management of controlled devices within the system
Integrated macro command lists support activating multiple events from a single button press (up to 16 actions per macro)
Battery backed up RTC (Real Time Clock) to control scheduled macro execution and program event activation
Supports extended keypad (trigger) control for easy, single button, macro activation (optional equipment)
Compatible with the wall plate control system, allowing for full control of devices within the same Ethernet network (optional equipment)
Advanced EDID management options including Internal, External, and User configurations
Easy firmware updates in the field via USB thumb drive or WebGUI
Controllable via top-panel buttons (with OSD), WebGUI, Telnet, and RS-232

Inputs	1x HDMI [1x Uncompressed AV and Data] 1x RJ-45 [1x HDMI & Propriety Data] 1x 3.5mm [1x IR IN Infrared Receiver] 1x USB Type-A [1x SERVICE Propriety Data]
Outputs	1x HDMI [1x Uncompressed AV and Data] 1x Terminal Block 5-pin [1x L/R Stereo (Balanced)] 2x 2-Pin Power Socket [2x Relay] 1x 3.5mm [1x IR OUT Infrared Emitter] 1x RJ-45 [1x IP Control / LAN Serving] 1x DE-9 [1x RS-232 Data]
PSU:	24V/2.7A
Dimensions	231mm [W] x 120mm [D] x 25mm [H]
Net Weight	420g
