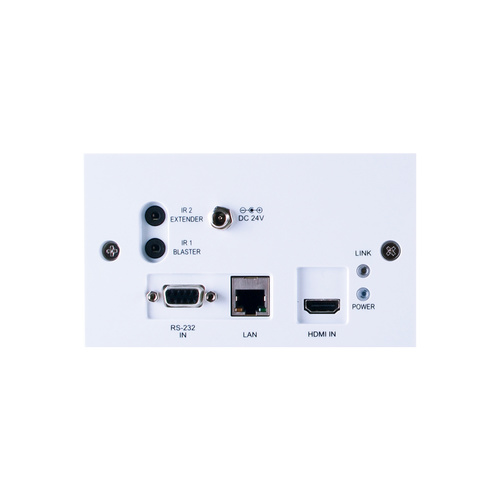

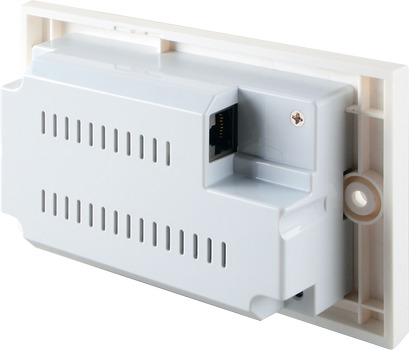

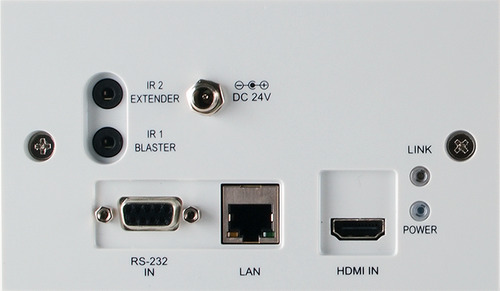

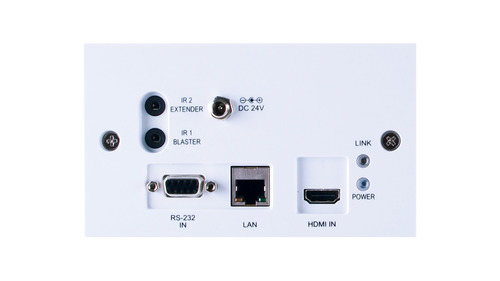

The HDMI over Single CAT5e/6/7 Wall-plate Transmitter and Receiver set can send uncompressed video/audio and IP data over a single run of CAT5e/6/7 cable up to 100 meters. It has the added benefit of control through the built-in RS-232 pass-through and 2-way IR control and a LAN serving connection. Additionally, it has bi-directional Power over Cable (PoC) functionality that allows for greater flexibility in installations.

(CH-507TXWPBD, PU-607BDWP-TX)

(PU-607BDWP-TX)

Specification
    • HDMI (with 3D format and 4K2K resolution support), HDCP and DVI compliant
    • Supports HDCP repeater and CEC bypass functions
    • Simultaneous transmission of uncompressed video/audio and data over a single CAT5e/6/7 cable up to 100m/328ft
    • HDBaseT™ 5Play convergence: uncompressed high-definition Video and Audio, LAN serving, bi-directional Power over Cable (PoC) and IR/RS-232 Control pass-through
    • Supports uncompressed video up to 4K2K resolution (3840×2160@30 Hz or 4096×2160@24 Hz)
    • Supports pass-through of high-definition audio formats - LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
    • Wall-plate design and installation friendly

    SKU CH-507TXWPBD
    Model # CH-507TXWPBD
    CYP EU Model # PU-607BDWP-TX
    Brand Cypress
    Shipping Weight 0.5800kg
    Downloads
    Manual
