​​The HDMI Extender over single CAT5e/6 incorporating IR and RS-232 signal transfer allows for a more efficient system setup and is easy to install. Uncompressed video and audio can be transmitted to distances of up to 60 meters (1080p) and supports High Definition Audio and 3D signals. Designed with HDBaseT technology for greater flexibility in custom installations with full HDMI and control signal transfer over a single CAT5e/6 cable.

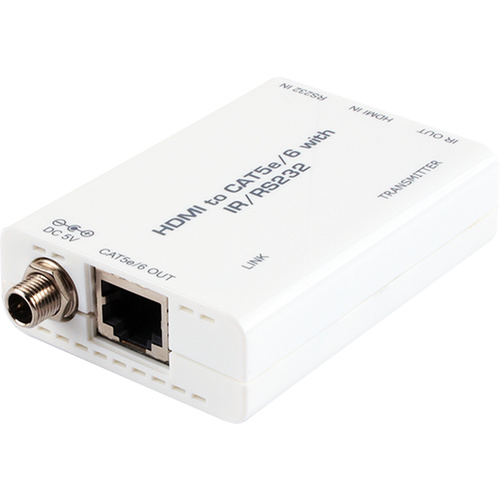

(CH-513TXLN, )

()

Specification
  • ​HDMI with 3D, 4K×2K support, HDCP and DVI compliant
  • Supports HDMI (including HDCP) over a single CAT5e/6 up to 60m
  • Full HD resolution support (1080p@60Hz/36-bit), 3D and 4Kx2K over 40m and PC resolution support (VGA to WUXGA) over CAT5e/6 cable
  • HDMI input up to 15m with 8-bit resolution or 10 m with 12-bit resolution
  • HDMI output up to 15 m with 8/12-bit resolution
  • Multiple control interfaces such as RS-232 with baud rate up to 115200/sec and IR
  • Supports HDCP repeater and CEC bypass
  • Supports High Definition LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Compact size with stylish design
Inputs
1x HDMI [1x Uncompressed AV and Data]
1x 3.5mm [1x RS-232]
Outputs
1x RJ-45 [1x HDMI & Propriety Data]
1x 3.5mm [1x Infrared Emitter]
PSU:
5V/2.6A
Dimensions
55mm [W] x 82mm [D] x 22mm [H]
Net Weight
60g

SKU CH-513TXLN
Model # CH-513TXLN
Brand Cypress
Downloads
Manual
