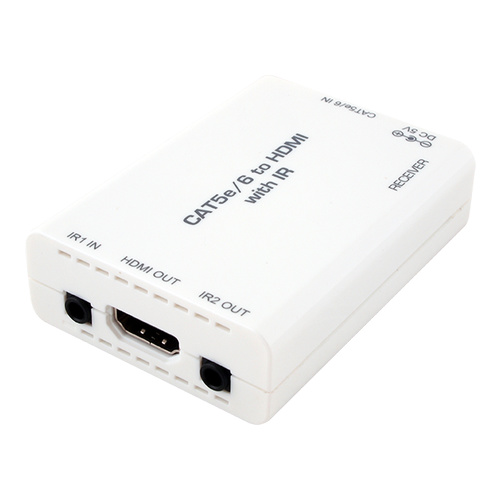

CH-514RXL - HDMI over CAT5e/6/7 Receiver with IR

The HDMI over Single CAT5e/6/7 Extender incorporating 2-way IR signal transfer allows for a more efficient system setup and is easy to install. Uncompressed video and audio can be transmitted to distances of up to 60 meters (1080p) or up to 35 meters (4K×2K) and supports High Definition Audio and 3D signals. Designed with HDBaseT Lite technology

(CH-514RXL, )

()

Specification

HDMI including 3D and 4K×2K (Ultra HD) support, HDCP and DVI compliant
Supports HDCP repeater and CEC bypass
Supports HDBaseT technology including 2-Way IR
Supports transmission distance of up to 60 meters through CAT5e/6/7 cable (1080p or 3D) or 35 meters (4K×2K)
Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters at 12-bit resolution and output up to 15 meters at 8-bit or 12-bit resolution
Audio support up to LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
Compact size with stylish design

Inputs	1x RJ-45 [1x HDMI & Propriety Data] 1x 3.5mm [1x Infrared Receiver]
Outputs	1x HDMI [1x Uncompressed AV and Data] 1x 3.5mm [1x Infrared Emitter]
PSU:	5V/2.6A
Dimensions	55mm [W] x 82mm [D] x 22mm [H]
Net Weight	64g
