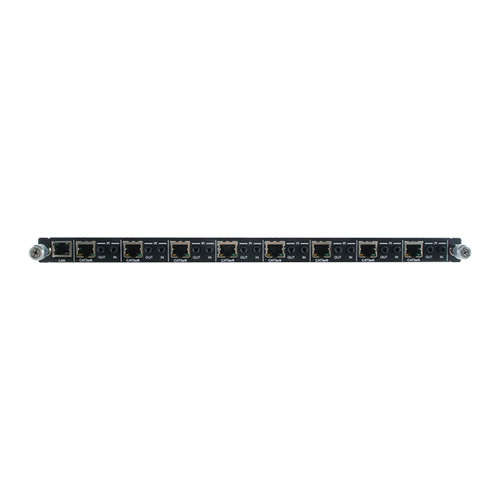

This input module comprises 8 HDBaseT connections which allows the transmission of HD sources, bi-directional IR and RS-232 signals, PoC (Power over Cable), and LAN serving over single runs of CAT5e/6/7 cables up to 100m@1080p (8-bit/12-bit) or 70m@4K. Resolutions up to 4K@30Hz or WUXGA@60Hz (RB), and 3D signals are supported along with LPCM 7.1CH, Dolby Digital Plus, Dolby True HD, and DTS Master Audio.

(CIN-8CV-5PLAY, IN-HBT5P-4K-8)

(IN-HBT5P-4K-8)

Specification

  • ​Video Bandwidth: 300MHz/10.2Gbps
  • HDBaseT technology: PoC, IR/RS-232, and Ethernet functions
  • Output Ports: 8 CAT5e/6/7, 8 IR Extender, 8 IR Blaster, and 1 LAN
  • Ethernet Speed: 100Mbps
  • Supported PC Resolutions: VGA to WUXGA
  • Supported HD Resolutions: 480i to 1080p and 4K2K@30Hz
  • IR Frequency: 30~50Hz
  • Supported Audio transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
  • Supported Audio sampling rate: 32~192kHz

Inputs
8x RJ-45 [8x HDMI & Propriety Data]
1x RJ-45 [1x LAN Serving]

SKU CIN-8CV-5PLAY
Model # CIN-8CV-5PLAY
CYP EU Model # IN-HBT5P-4K-8
Brand Cypress
