CLUX-11CA - HDMI Audio Inserter

The HDMI™ Audio Inserter lets you insert an external audio signal into any HDMI signal path. The unit allows you to insert stereo and multi-channel digital surround sound signals to give users the capability to select audio formats while extending your HDMI signal.

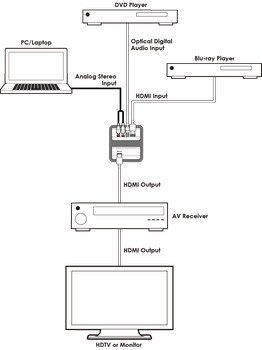

(CLUX-11CA, AU-11CA)

(AU-11CA)

Specification

Compliant with HDMI, HDCP 1.2 and DVI 1.0
Supports HDMI audio sampling rates up to 192 kHz
Supports Optical S/PDIF audio sampling rate up to 48 kHz
Supports TMDS clock frequency up to 225 MHz
Supports high-bit-rate (HBR) audio
HDMI cable distance tested with 1080p at 8-bit or 12-bit resolution, the input and output can run up to 15 meters (8-bit) or 10 meters (12-bit)
Low power consumption
Supports 3D signal

Inputs	1x HDMI [1x Uncompressed AV and Data] 1x TOSLINK [1x Optical 2 Channel LPCM] 2x RCA [1x Stereo (L/R)]
Outputs	1x HDMI [1x Uncompressed AV and Data]
PSU:	5V/1.2A
Dimensions	91mm [W] x 86mm [D] x 34mm [H]
Net Weight	107g
