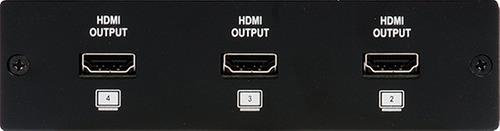

CLUX-4 - 1×4 HDMI Splitter

The HDMI v1.3 Distribution Amplifier Series is the most advanced solution to HDMI signal distribution. Each product in this series is compatible with HDMI v1.3 specifications, a cutting-edge technology which defines the supports to transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps). Besides splitting and distributing, the HDMI v1.3 DA series also amplifiies signal, provides high performance I/O of audio and video.

(CLUX-4, )

()

Specification

HDMI 1.3, HDCP1.1 and DVI1.0 compliant
Deep Color video up to 12-bit, 1080p@24/60 Hz
One HDMI source connect up to four HDMI displays simultaneously
HDCP keysets allows each output to work independently when connected to na HDMI display
Splits a HDMI source up to four outputs without signal loss
Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable
Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192 kHz Fs sample rate)
Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480i to 1080p
HDMI cable distance test with 1080p/8bits resolution the, Input/Output can run up to15/15 meters
HDMI cable distance test with 1080p/12bits the Input/Output can run up to 10/15 meters
Selects EDID from TV mode or STD mode (this splitter)
Supports CEC bypass

Inputs	1x HDMI [1x Uncompressed AV and Data]
Outputs	4x HDMI [4x Uncompressed AV and Data]
PSU:	5V/2.6A
Dimensions	203mm [W] x 111mm [D] x 32mm [H]
Net Weight	248g
