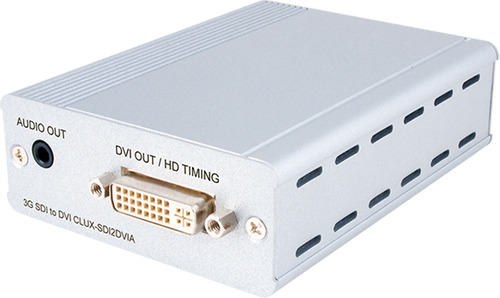

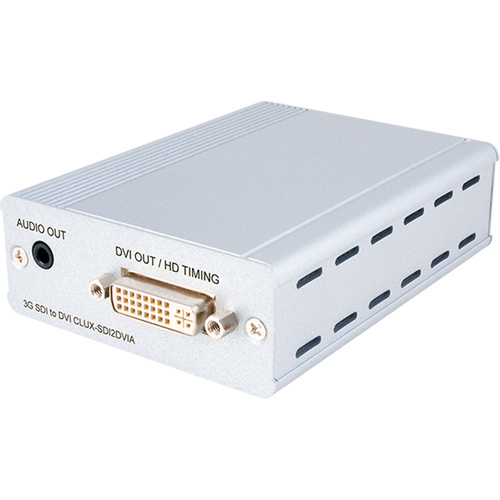

CLUX-SDI2DVIA - 3G-SDI to DVI Converter with Stereo Audio Output

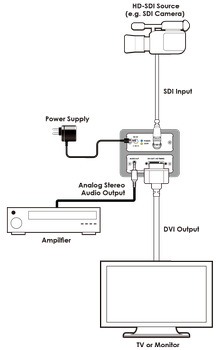

The SDI to DVI Converter allows SD, HD and 3G-SDI signals to be shown on DVI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on DVI display. Additionally, the built-in stereo Audio Out will allow the user to enjoy perfectly synchronized video and audio.

(CLUX-SDI2DVIA, )

()

Specification

Shows SDI source on DVI display
Auto-detects SD-SDI, HD-SDI and 3G-SDI input signals
Supports SDI bitrates of 2.970Gbit/s & 2.970/1.001Gbit/s, 1.485Gbit/s & 1.485/1.001Gbit/s, and 270Mbit/s:
- 3G-SDI supports SMPTE 424M/[email protected]/s & 2.970/1.001Gbit/s
- HD-SDI supports SMPTE [email protected]/s & 1.485/1.001Gbit/s
- SD-SDI supports SMPTE 259M-C@270Mbit/s
Converts SDI formatto DVI:
- SD-SDI (SMPTE 259M-C) to 480i/576i
- HD-SDI (SMPTE 292M) to 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz
- 3G-SDI (SMPTE 424M/425M-A) to [email protected]/24/25/29.97/30/ 50/59.94/60Hz, [email protected]/24/25/29.97/30Hz
Supports SDI input distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

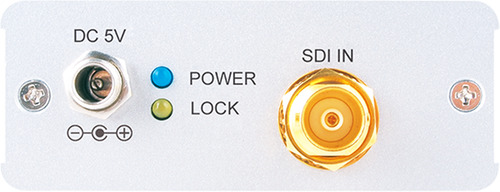

Inputs	1x BNC [1x 3G-SDI / HD-SDI / SD-SDI]

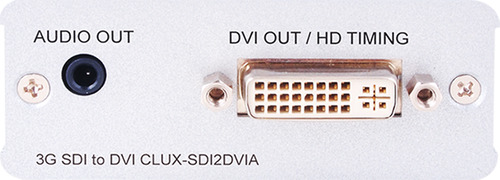

Outputs	1x DVI-I [1x DVI-D] 1x 3.5mm [1x Stereo(L/R)]
PSU:	5V/2.6A
Dimensions	78mm [W] x 124mm [D] x 30mm [H]
Net Weight	194g
