​The SDI to Optical Fiber Extender set is designed to extend your SDI signals over Optical Fiber for long distance transmission up to 10km. Signals from 50 Mb/s to 3 Gb/s bandwidth can be sent without loss or compression with thinner, lighter cables for easy installations.

(CLUX-SDI2OF, )

()

Specification
  • ​SMPTE 287-2006 compliant
  • Robust error-free transmission of signals from 50Mb/s to 3Gb/s up to 10km over single-mode fiber (distance is dependent on the fiber module used)
  • Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
  • SD-SDI supports SMPTE 259M-C@270Mbit/s, HD-SDI supports SMPTE [email protected]/s & 1.485/1.001Gbit/s, and 3G-SDI supports SMPTE 424M/[email protected]/s & 2.970/1.001Gbit/s
  • Supports integrated SDI audio up to maximum 16 channels of 48kHz audio
  • Automatic video mode detection (3G/HD/SD)
  • Faster data transmission
  • Lower power consumption

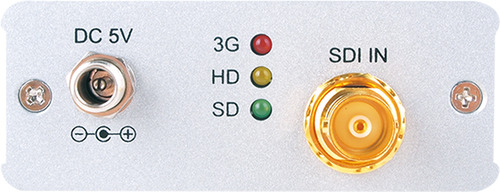

Inputs
1x BNC [1x 3G-SDI / HD-SDI / SD-SDI]
Outputs
1x LC Single-Mode Fiber Optical [1x HDMI & Propriety Data]
PSU:
5V/2.6A
Dimensions
78mm [W] x 143mm [D] x 30mm [H]
Net Weight
200g

SKU CLUX-SDI2OF
Model # CLUX-SDI2OF
Brand Cypress
