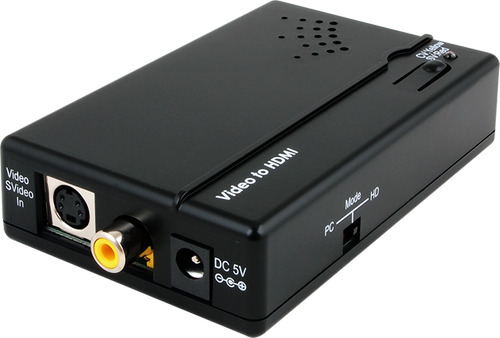

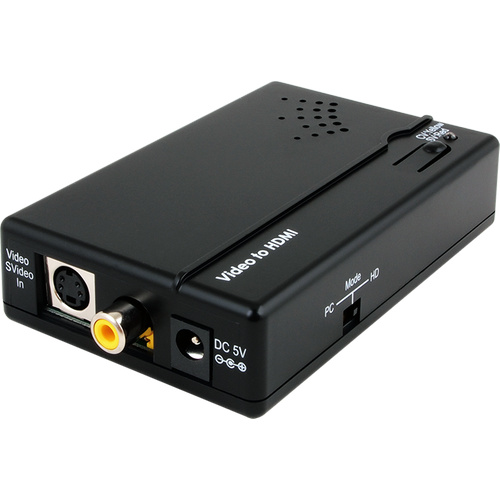

CM-398H - CV/SV to HDMI Scaler with 3.5mm Audio Input

This is a Video to HDMI converter box that can convert CV/SV (NTSC or PAL or SECAM system) to HDMI resolutions of XGA to UXGA or HD resolutions of 480p to 1080p. With frame rate conversion feature that allows users to view DVD, VCR or video game sources on the HD monitor/TV this device has an On-Screen Display function that allows users to easily select the output resolution and the audio input, after which both the video and audio signal are combined into an HDMI signal so they can be output to a compatible display.

(CM-398H, SY-398H)

(SY-398H)

Specification

Operates in NTSC 3.58, PAL and SECAM system
Scales CV/SV to HDMI format
Output PC resolutions support XGA, SXGA, UXGA
Output Component resolutions support 480p/576p, 720p@50 or 60,1080p@50 or 60
3D (frame based) motion adaptive YNR/CNR noise reduction
On-Screen Display
Advance 3D motion adaptive de-interlace
Automatic 2:2 & 3:2 fi lm mode detection
Play video games on your HD monitor/TV
High-resolution output picture
Plug & play- no drive software required
Component resolution support 50 to 60 frame rate conversion only not 60 to 50
PC resolution frame rate only supports 60Hz output

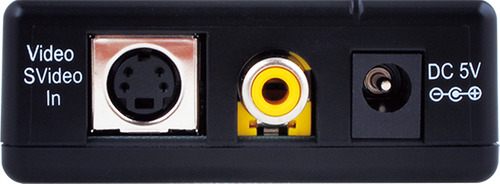

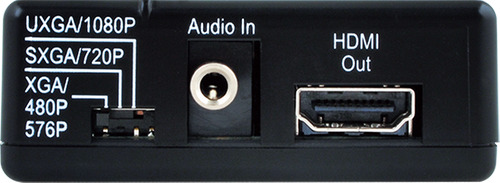

Inputs	1x Mini-DIN-4 [1x S-video] 1x RCA [1x Composite Video] 1x 3.5mm [1x Stereo(L/R)]
Outputs	1x HDMI [1x Uncompressed AV and Data]
PSU:	5V/1A
Dimensions	162mm [W] x 64mm [D] x 33mm [H]
Net Weight	100g
