CPLUS-V4E - 4K HDR 1×4 HDMI Splitter

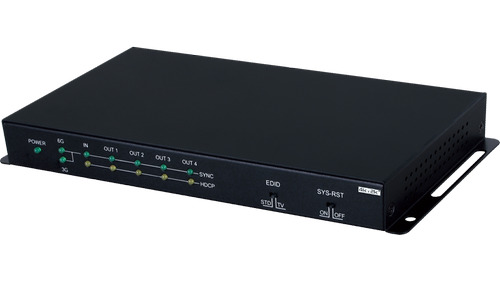

This 1 by 4 HDMI Splitter with HDCP 2.2 is an advanced solution for splitting and distributing a single HDMI input to four HDMI outputs. It provides high performance audio and video output up to 4K2K@60Hz (YUV444) resolution and is capable of providing high levels of audio and video performance. It supports passthrough of high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio and Dolby Atmos with audio sampling rates up to 192kHz. Input and outputs status are indicated on the front panel. The System Reset function allows the unit to reset the TV to its default HDMI input automatically.

(CPLUS-V4E, )

()

Specification

HDMI (with 6G audio/video support), HDCP 2.2 and DVI compliant (note: does not support 'Deep Color'/color space - YCbCr 422/444)
1 HDMI input and 4 HDMI outputs
Supports System Reset function (CEC active source command)
Simultaneous display of a single Ultra High-Definition source on up to 4 UHDTV displays
3D passthrough with compatible 3D source and 3D TV
Supports UHDTV resolutions up to 4K2K: 3840×2160@24/25/30/50/60Hz & 4096×2160@24/25/30/60Hz
Supports passthrough of high definition audio: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD, DTS-HD Master Audio & Dolby Atmos
HDCP 2.2 and HDCP1.4 compliant
HDMI input supports 'Standard' mode and 'TV' mode EDID settings

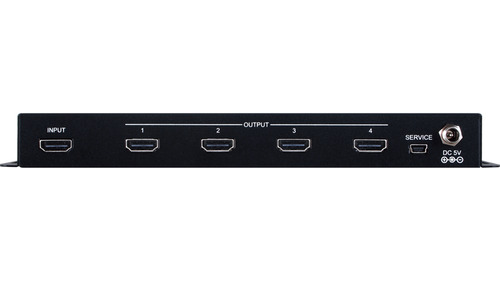

Inputs	1x HDMI [1x Uncompressed AV and Data] 1x USB Mini-B [1x SERVICE Propriety Data]
Outputs	4x HDMI [4x Uncompressed AV and Data]
PSU:	5V/2.6A
Dimensions	231mm [W] x 118mm [D] x 30mm [H]
Net Weight	616g
